FRP High Voltage Discharge Rod 18 Ft – Earthing Rod with Aluminium Clamp, Copper Cable, Electrical Safety Grounding Discharge Stick for Lineman Key Features

FRP High Voltage Discharge Rod 18 Ft –  Earthing Rod with Aluminium Clamp, Copper Cable, Electrical Safety Grounding Discharge Stick for Lineman

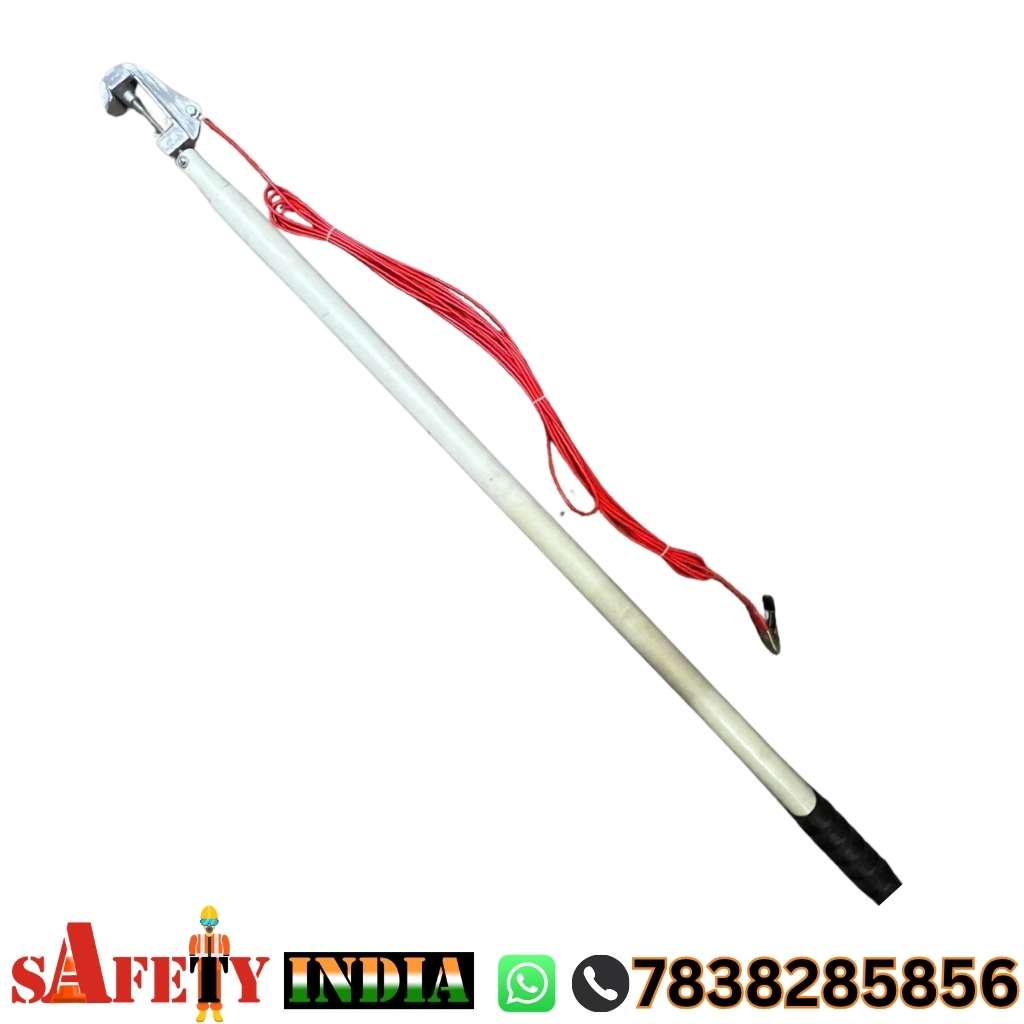

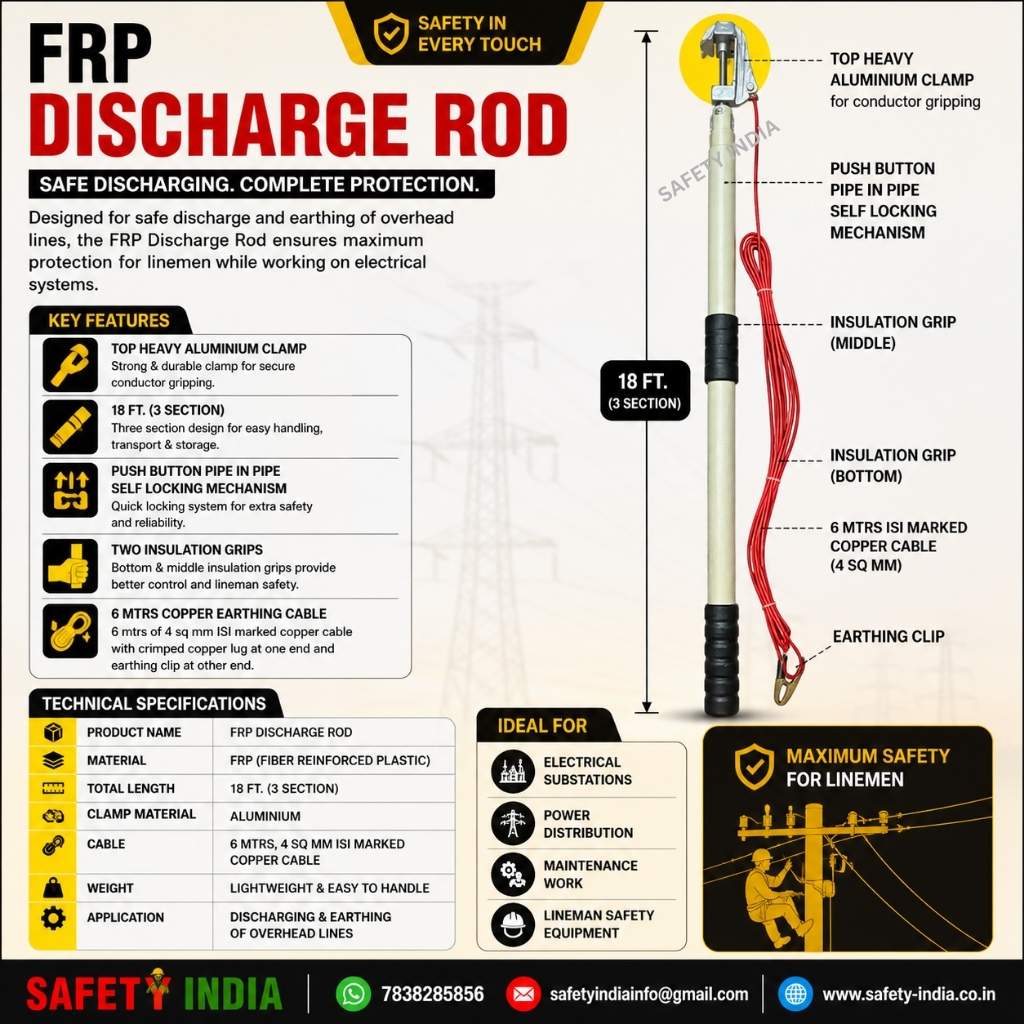

The FRP High Voltage Discharge Rod is a critical electrical safety tool designed for safely discharging residual or induced voltage from high voltage lines, equipment, and conductors before maintenance work. Built using high-quality FRP (Fiber Reinforced Plastic), this earthing discharge rod offers excellent insulation, strength, and durability, making it ideal for linemen, electrical engineers, and power utility professionals.

This high voltage earthing rod features an 18 ft telescopic design with 3 sections, allowing easy extension and compact storage. The advanced pipe-in-pipe push button self-locking mechanism ensures secure operation at different lengths, providing both flexibility and safety during high voltage applications.

The top of the rod is equipped with a heavy-duty aluminium clamp that ensures firm gripping of conductors, enabling effective grounding and discharge. The rod also includes two insulated grips (middle and bottom), offering enhanced protection and safe handling during operation.

For efficient grounding, the discharge rod comes with a 6-meter ISI marked 4 sq mm copper cable, fitted with a crimped copper lug on one end and an earthing clip on the other, ensuring excellent conductivity and reliable earthing performance.

This FRP discharge stick is widely used in power transmission, substations, electrical maintenance, and industrial safety operations. It is an essential tool for ensuring worker safety by eliminating dangerous electrical charges before handling high voltage systems.

Key Features

• ⚡ High Voltage Discharge & Grounding Tool – Designed to safely discharge residual current from power lines and electrical equipment, ensuring maximum safety for linemen and technicians.

• 🛠️ Heavy Duty Aluminium Clamp Head – Strong and durable clamp provides secure conductor gripping for effective grounding and electrical discharge.

• 📏 18 Ft Telescopic 3 Section Design – Extendable pipe-in-pipe structure with push button self-locking system for adjustable length and easy operation.

• 🛡️ Dual Insulated Grip for Safety – Equipped with two insulation grips (middle & bottom) for improved handling and protection during high voltage operations.

• 🔌 ISI Marked Copper Cable with Earthing Clip – Includes 6 meters 4 sq mm copper cable, with crimped lug and earthing clip for efficient current discharge and grounding.

Technical Specifications

• Product Name: FRP High Voltage Discharge Rod
• Material: Fiber Reinforced Plastic (FRP)
• Rod Length: 18 Feet (Telescopic)
• Sections: 3 Section Telescopic
• Locking Mechanism: Push Button Pipe-in-Pipe Self Locking System
• Top Head: Heavy Duty Aluminium Clamp
• Grip Type: Dual Insulated Grips (Middle & Bottom)
• Cable Length: 6 Meters
• Cable Type: ISI Marked Copper Cable
• Cable Size: 4 Sq mm
• Cable Ends:

  • One End: Crimped Copper Lug
  • Other End: Earthing Clip
• Application: High Voltage Discharge & Grounding
• Usage: Electrical Maintenance, Power Lines, Substations
• Safety Feature: High insulation and safe handling design

Applications

• Power transmission & distribution lines
• Electrical substations
• High voltage maintenance work
• Industrial electrical safety
• Utility and lineman operations
• Transformer and switchgear maintenance
